Single Screw Extruder

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine

All Category

Plastic Washing Recycling Machine

Plastic Pelletizing Recycling Machine

PET Flakes Pelletizing Machine

Plastic Pipe Extrusion Machinery

Waste Water Treatment Plant

Mrs. Jennifer Qing

jennifer.qing@puruien.com

Contact Now

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine

Brand Name:	PULIER OR PR
Model Number:	ML160/SJ180
MOQ:	1SET
Price:	Negotiable
Packaging Details:	shipment requested package
Payment Terms:	L/C or T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Name:

Single Screw Extruder

Application:

Heavily Printed PE Film And BOPP Film

Capacity:

600kghr To 800kghr

Screw And Barrel Material:

38CrMoAl Or Customerized

Motor:

WEG Siemens ABB China Famous Brand With Inverter

Eelectrical Control:

Eelctrical Panel Or PLC Touch Screen

Gear Box:

Changzhou Guomao Or Customerized

Heating Way:

Electrcial Heating

Cooling Way:

Force Cooling

Lubrication Way:

Froce Lubrication

Quality Warranty:

12 Months

Aboard Service:

Installation And Commission

Operator:

1 Or 2

Supply Ability:

100 sets per year

Highlight:

Double Stage Single Screw Extruder

Recycling Extruder Machine

Heavily Printed BOPP Plastic Film Extruder

Product Description

High Capacity Heavily Printed BOPP and PE Plastic Film Recycling Double Stage Single Screw Extruder

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine 0

Working Flow:

Belt Conveyor- Plastic Shredder-Belt Conveyor with Metal Detector- Shredding Compactor -ML160/28 Single Screw Extruder -Hydraulic Screen Changer- Vacuum system between Two Stage-SJ180/17 Single Screw Extruder-Hydraulic Screen changer-Vertical Water Ring System -Water tank-Centrifugal Dewatering System-Vibration System-Storage Silo-Vertical Mixer

Mian Techinical Parameter (high efficiency with power saving)

Model	ML75/SJ85	ML85/SJ90	ML100/SJ120	ML130/SJ140	ML160/SJ180	ML180/SJ200	ML200/SJ200
Screw diameter(mm)	75/85	85/90	100/120	130/140	160/180	180/200	200/200
L/D	26 to 37
Output(kg/h)	100-150	200-300	300 to 400	500	600 to 800	800 to 1000	1200 to 1500

Working Process

Belt conveyor feed material into shredder

while shredding scrap go into shredding compactor for pre-cutting, pre-homogenization, pre-plastification

Through friction force between compactor rotary cutters and fixed cutters, material get shrinked

The shrinked material get melted in main extruder by heating and cooling

Water ring cutting system cut the melt plastic into pellets

The first stage extruder mainly used for plastic plastification, the second plastic extruder mainly designed for material degassing

Why Choose Us

A.PR has professional manufacturer since 2006. we have our own technical design department. Each extruder get designed according to material feature.
B.Power saving with high output

C.Quality guaranty time is 12 months since the Bill of Lading date.
D.Delivery time: 40 work days to 60 days
E.Ship requested package
F.Machine installation is aboard available. It takes about 5 to 7 days with completing one time of installation. The assigned engineer(s) manage the machine user training, machine operation and commission

General Introduction

Model name	ML
output	Plastic pellets/granules/resins/plastic raw material
Machine parts	Belt conveyor, cutter compactor, main extruder, pelletizing unit, cooling system, silo, cabinet
Recycling material	PP/PE/LDPE/HDPE film, bag, fiber
Capacity range	100kg/h to 1200kg/h
Feeding way	Conveyor, roll driving system
Screw diameter	75mm to 200mm
Screw L/D	26 to 33
Screw raw material	38CrMoAl or bimetallic
degassing	Natural degassing, vacuum degassing
Cutting type	Vertical pelletizing way, pull strip pelletizing
Cooling type	Water cool, air cool
voltage	Customized
Optional devices	Metal detector, water cooling system, feeding silo, vibration system
Delivery time	40 to 60 days
Warranty time	13 months
Technical supports	Machine layout, installation layout, engineer oversea service
Certificate	CE/ SGS/ TUV/CO

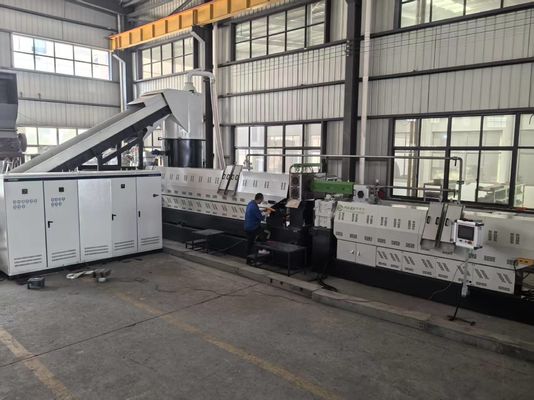

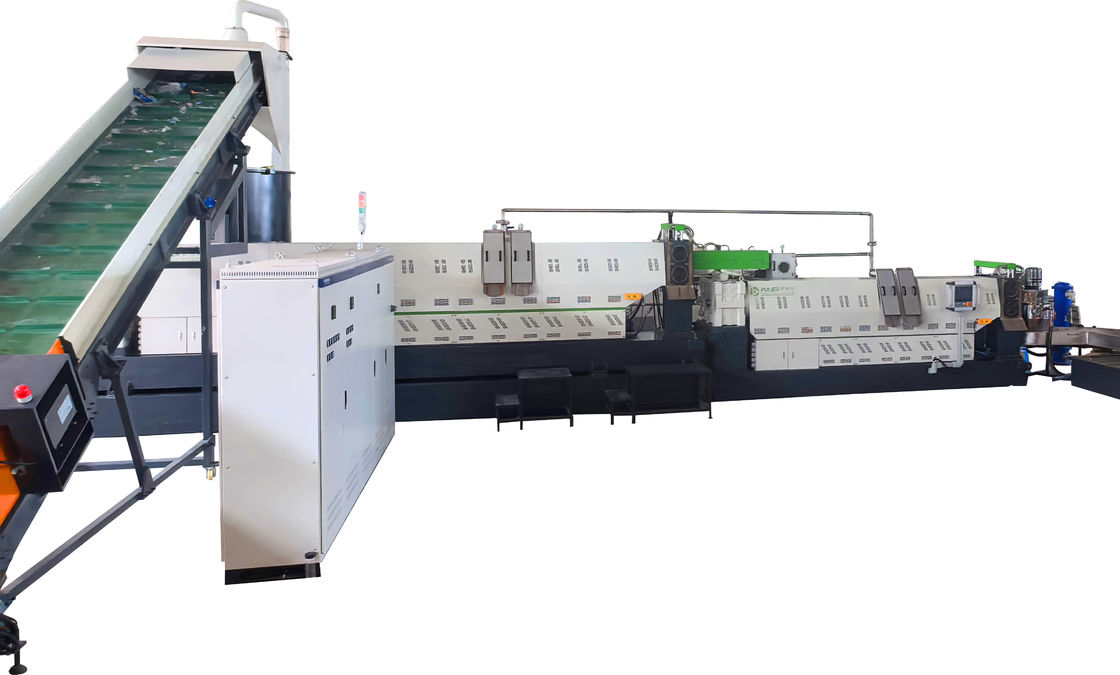

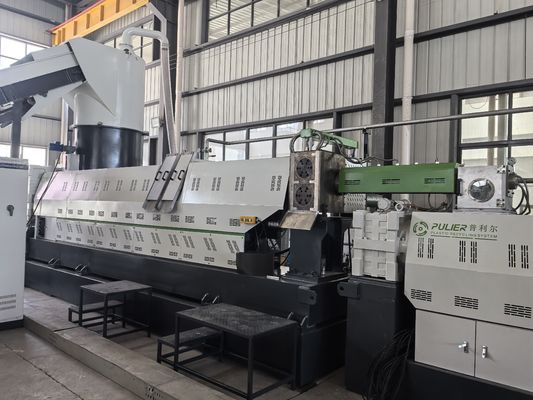

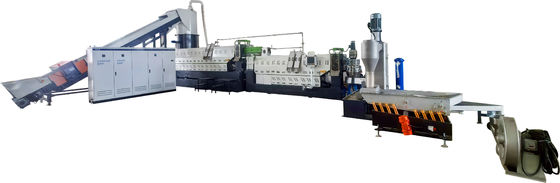

Machine Pictures

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine 1

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine 2

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine 3

Heavily Printed BOPP Plastic Film Double Stage Single Screw Extruder Recycling Extruder Machine 4

Recycling Machine Running Video
