High Efficiency 1000kghr Washed PP Big Bag Plastic Squeezing Dryer Machine
Project Analysis
The moisture content of the film after washing is too high, which affects the quality of the particles produced.
The conical screw of the squeeze dryer pushes the material, squeezes out the water, and then passes through the cutting die to process the material into a semi-plasticized state.
The moisture content is within 3% to 5%.
Machine Feature:
Integrated screw and barrel avoid broking easily than welded screw
Strong gear box offer enough stenfth for whole system
Smart control with PLC touch screen and frequency inverter
Anti-blocking system for feeding part, which can avoid material block(anti-brige)
Output water content after plastic squeezer is 3% to 5%
Material before plastic squeezer

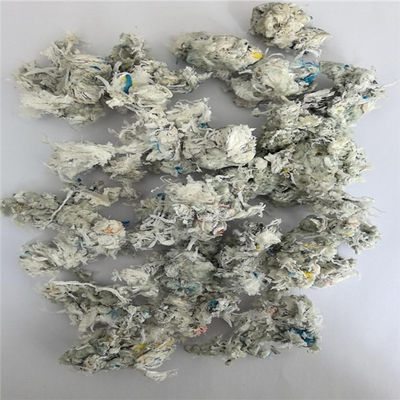

Material after plastic squeezer
Technical Parameter of plastic squeezer
| Model | NG250 | NG300 | NG320 | NG350 | NG380 |
| PE Capacity(kg/hr) | 300 | 500 | 800 | 1000 | 1200 |
|
PP Capacity(kg/hr) |
200 | 400 | 500 | 600 | 800 |

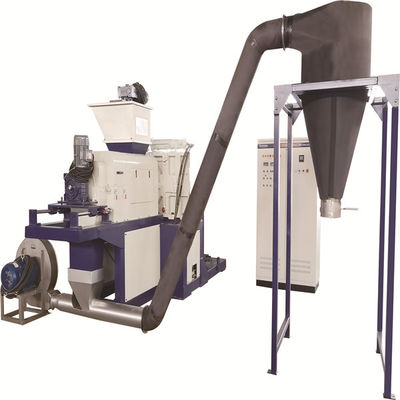

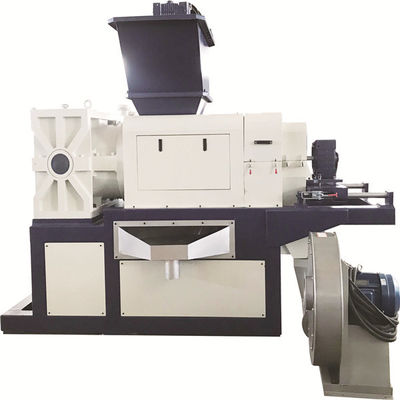

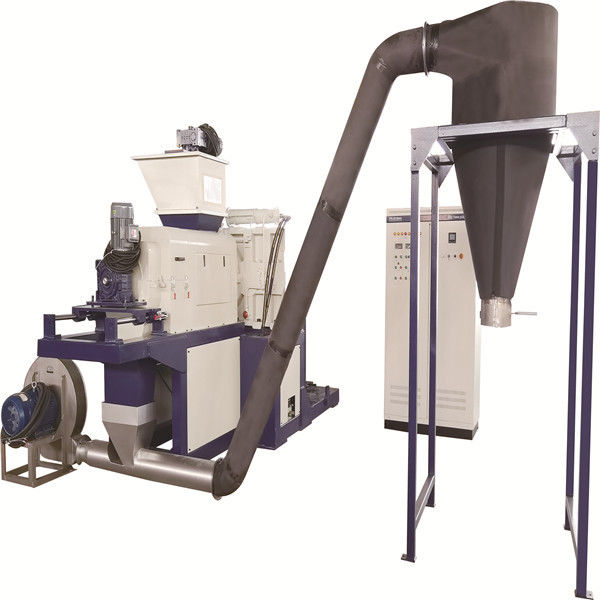

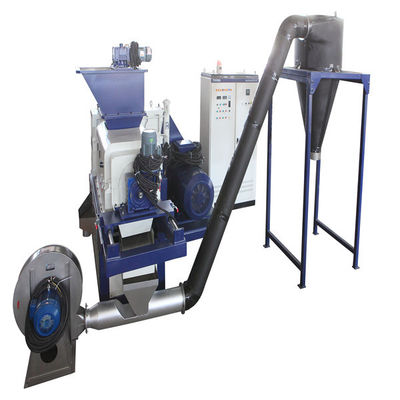

Main Machine Pictures
