PET Bottle Washing Line with Siemens PLC Control for 500-3000kg/H Plastic Bottle Recycling at 490kw
PET Bottle Washing Line with Siemens PLC Control for 500-3000kg/H Plastic Bottle Recycling at 490kw
Basic Properties
Country Of Origin
China
Brand Name
PULIER/PR
Certificate
CE
PRODUCT MODEL
PET(QX1000)
Trading Properties
MOQ
1set
Unit Price
USD200000 per set-USD250,000 per set
Payment Method
L/C,T/T
Supply Capacity
10sets
Product Summary
Complete PET Bottle Washing Line with Siemens PLC Control PR-PULIER's advanced PET bottle washing line represents the latest innovation in plastic recycling technology. With over 18 years of industry expertise, we deliver high-performance solutions for efficient plastic bottle processing with ...
Product Details
Highlight:
490kw PET Bottle Washing Line
,Siemens PLC Control PET Bottle Washing Line
,500-3000kg/H Plastic Bottle Recycling Line
Product Name:
PET Bottle Washing Line
Design:
Complete And Customized
Motor:
Wanan,Dazhong Or WEG
Electric Contral:
Siemens PLC Control
Color:
Blue And Grey
Guarantee:
1 Year
Delivery Time:
50 Days
Drying Method:
Centrifugal Drying
Application:
Recycling Of HDPE Bottles Drums Jars
Water Consumption:
2-3m³/h
Total Power:
490kw
Material:
PET Bottles
Heating Method:
Electric Heating
Steam Consumption:
≤500kg/h
Final Product:
Clean And Dry PET Flakes
Washing Process:
Pre-washing, Label Removing, Crushing, Hot Washing, Friction Washing, Floating Washing, Drying
Washing Efficiency:
≥98%
Capacity:
500-3000kg/h
Occupied Area:
1500-2500m²
Product Description

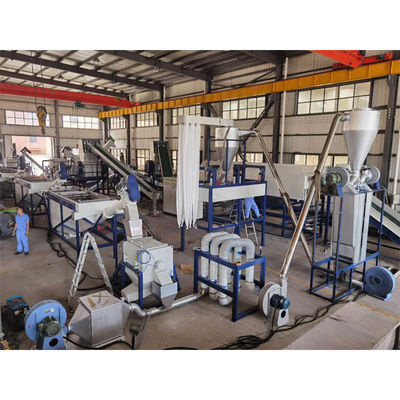

Complete PET Bottle Washing Line with Siemens PLC Control
PR-PULIER's advanced PET bottle washing line represents the latest innovation in plastic recycling technology. With over 18 years of industry expertise, we deliver high-performance solutions for efficient plastic bottle processing with capacities ranging from 500-3000kg/h.
System Overview
Our comprehensive PET bottle cleaning system is engineered to thoroughly clean and process post-consumer PET bottles for sustainable recycling. The complete line integrates multiple specialized components for optimal performance and reliability.
Processing Sequence
- Bale opener
- Belt conveyer
- Rotary screen
- Belt conveyer
- Label remover
- Pre-washer
- Intelligent optical sorting system
- Manual sorting system
- Crusher
- Hot washer
- Screw loader
- Floating washer
- High speed friction washer
- Dewatering
- Round floating washer
- Floating washer
- Dewatering
- Pipe drying
- Bottle label separator
- Compacting packing
Key Equipment Features
Bale Opener
Newly designed four-shaft PET bottle bale opener effectively opens bales and conveys separated bottles onto the belt conveyor.
Label Remover
High-efficiency label removal with 99% effectiveness for pressed bottles and 90% for round bottles.
Eddy Current Separator
Specialized equipment designed to separate copper, aluminum, and other non-ferrous metals from the PET stream.
Magnetic Sorter
Advanced magnetic separation technology for removing iron contaminants from PET bottles.
Color Sorter and Polymer Sorter
AI-powered high-efficiency sorting system capable of separating non-PET bottles by shape, size, and color. Includes polymer sorter for distinguishing mixed PET/PP bottles.
Pre-washer
Initial washing stage using water to remove external impurities and surface dust from bottles.

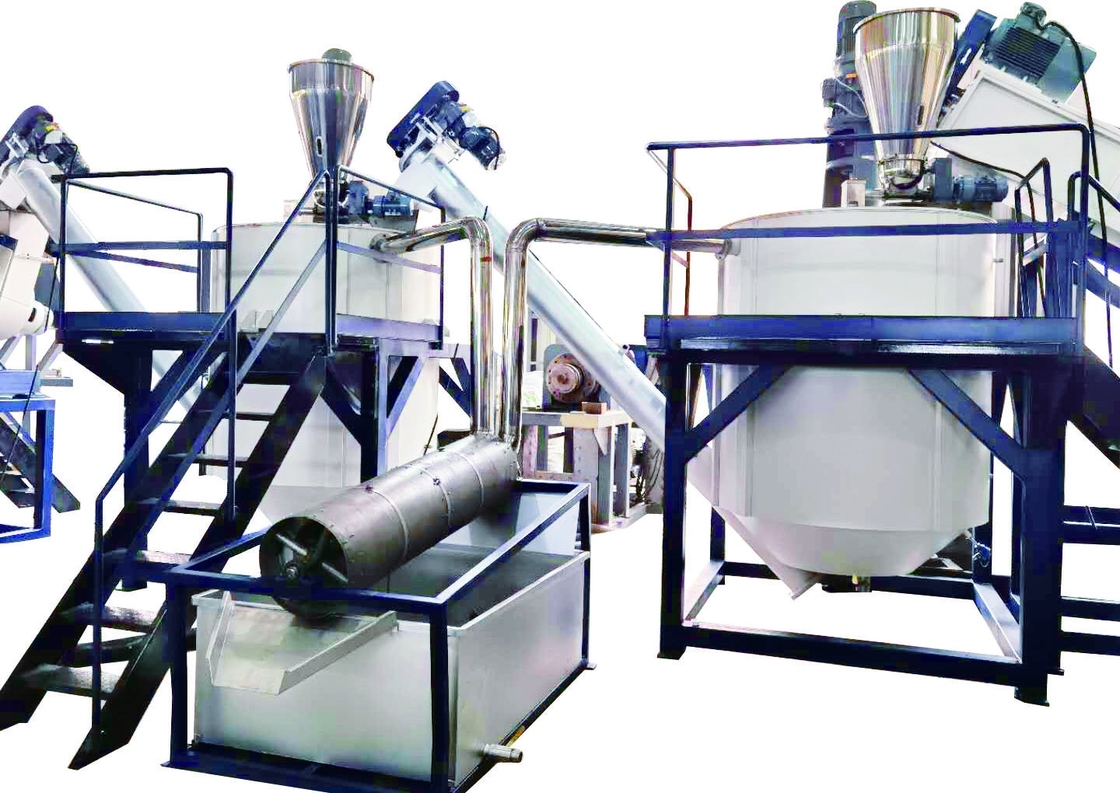

Hot Washing Machine
Thermal washing system heating water to 70-80°C using steam injection. Central shaft rotation provides frictional washing to effectively remove labels and adhesive residues from flakes.
High Speed Friction Washer
Post-thermal washing unit operating at 1000rpm with internal blade mechanism to remove softened glues and sticky residues.

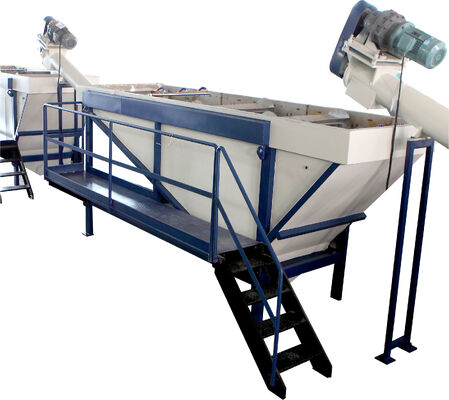

Floating Tank
Flake processing unit featuring thumb wheel rotation system to move materials forward while ensuring proper flotation separation.
Dewatering Machine
High-speed centrifugal dewatering system operating at approximately 2000 rpm to remove water and sand, achieving final moisture content of 1%.
Bottle Flakes Labels Separator
Specialized equipment designed to effectively remove crushed labels and residual dust from processed bottle flakes.
Color Sorter for Flakes
Optional advanced color sorting system available for final stage flake separation by color specifications.
Resource Consumption
| Item | Average Consumption |
|---|---|
| Electricity (kwh) | 170 |
| Steam (kg) | 510 |
| Washing Detergent (kg/ton) | 5 |
| Water | 2 |
Technical Specifications
| Capacity (kg/h) | Power Installed (kW) | Required Space (M²) | Labor | Steam Requirement (kg/h) | Water Consumption (M³/h) |
|---|---|---|---|---|---|
| 1000 | 490 | 730 | 5 | 510 | 2.1 |
| 2000 | 680 | 880 | 6 | 790 | 2.9 |
| 3000 | 890 | 1020 | 7 | 1010 | 3.8 |
PET Flakes Quality Standards
| Parameter | Specification |
|---|---|
| Moisture Content | <0.9-1% |
| PVC | <49ppmm |
| Glue | <10.5ppm |
| PP/PE | <19ppm |
| Metal | <18ppm |
| Label | <19ppm |
| Variegated Tablets | <28ppm |
| PH | Neutral |
| Total Impurity | <100ppm |
| Flakes Size | 12,14mm |
