Vertical Single Screw Extruder Customized PP Woven Bag Recycling Machinery 250kg/Hr
Vertical Single Screw Extruder Customized PP Woven Bag Recycling Machinery 250kg/Hr
Basic Properties
Country Of Origin
China
Brand Name
PULIER OR PR
Certificate
CE
PRODUCT MODEL
ML100/SJ120
Trading Properties
MOQ
1SET
Unit Price
Negotiable
Payment Method
L/C or T/T
Supply Capacity
100 sets per year
Product Summary
High Capacity PP Woven Bag Recycling Double Stage Single Screw Extruder Working Flow: Belt Conveyor Plastic Shredder Belt Conveyor with Metal Detector Shredding Compactor ML100/38 Single Screw Extruder Hydraulic Screen Changer Vacuum system between Two Stage SJ120/10 Single Screw Extruder Hydraulic ...
Product Details
Highlight:
Vertical Single Screw Extruder
,Single Screw Extruder Customized
,PP Woven Bag Recycling Machinery 250kg/Hr
Name:
Single Screw Extruder
Application:
PP Woven Bag And Jumbo Bag
Capacity:
250kghr
Screw And Barrel Material:
38CrMoAl Or Customerized
Motor:
WEG Siemens ABB China Famous Brand With Inverter
Eelectrical Control:
Eelctrical Panel Or PLC Touch Screen
Gear Box:
Changzhou Guomao Or Customerized
Heating Way:
Electrcial Heating
Cooling Way:
Force Cooling
Lubrication Way:
Froce Lubrication
Quality Warranty:
12 Months
Aboard Service:
Installation And Commission
Operator:
1 Or 2
Product Description
High Capacity PP Woven Bag Recycling Double Stage Single Screw Extruder
Working Flow:
- Belt Conveyor
- Plastic Shredder
- Belt Conveyor with Metal Detector
- Shredding Compactor
- ML100/38 Single Screw Extruder
- Hydraulic Screen Changer
- Vacuum system between Two Stage
- SJ120/10 Single Screw Extruder
- Hydraulic Screen changer
- Vertical Water Ring System
- Water tank
- Centrifugal Dewatering System
- Vibration System
- Storage Silo
- Vertical Mixer
Mian Techinical Parameter (high efficiency with power saving)
| Model | ML75/SJ85 | ML85/SJ90 | ML100/SJ120 | ML130/SJ140 | ML160/SJ180 | ML180/SJ200 | ML200/SJ200 |
|---|---|---|---|---|---|---|---|
| Screw diameter(mm) | 75/85 | 85/90 | 100/120 | 130/140 | 160/180 | 180/200 | 200/200 |
| L/D | 26 to 37 | ||||||
| Output(kg/h) | 100-150 | 200-300 | 300 to 400 | 500 | 600 to 800 | 800 to 1000 | 1200 to 1500 |
Working Process
Belt conveyor feed material into shredder
while shredding scrap go into shredding compactor for pre-cutting, pre-homogenization, pre-plastification
Through friction force between compactor rotary cutters and fixed cutters, material get shrinked
The shrinked material get melted in main extruder by heating and cooling
Water ring cutting system cut the melt plastic into pellets
Why Choose Us
- PR has professional manufacturer since 2006. we have our own technical design department. Each extruder get designed according to material feature.
- Power saving with high output
- Quality guaranty time is 12 months since the Bill of Lading date.
- Delivery time: 40 work days to 60 days
- Ship requested package
- Machine installation is aboard available. It takes about 5 to 7 days with completing one time of installation. The assigned engineer(s) manage the machine user training, machine operation and commission
General Introduction
| Model name | ML |
| output | Plastic pellets/granules/resins/plastic raw material |
| Machine parts | Belt conveyor, cutter compactor, main extruder, pelletizing unit, cooling system, silo, cabinet |
| Recycling material | PP/PE/LDPE/HDPE film, bag, fiber |
| Capacity range | 100kg/h to 1200kg/h |
| Feeding way | Conveyor, roll driving system |
| Screw diameter | 75mm to 200mm |
| Screw L/D | 26 to 33 |
| Screw raw material | 38CrMoAl or bimetallic |
| degassing | Natural degassing, vacuum degassing |
| Cutting type | Vertical pelletizing way, pull strip pelletizing |
| Cooling type | Water cool, air cool |
| voltage | Customized |
| Optional devices | Metal detector, water cooling system, feeding silo, vibration system |
| Delivery time | 40 to 60 days |
| Warranty time | 13 months |
| Technical supports | Machine layout, installation layout, engineer oversea service |
| Certificate | CE/ SGS/ TUV/CO |

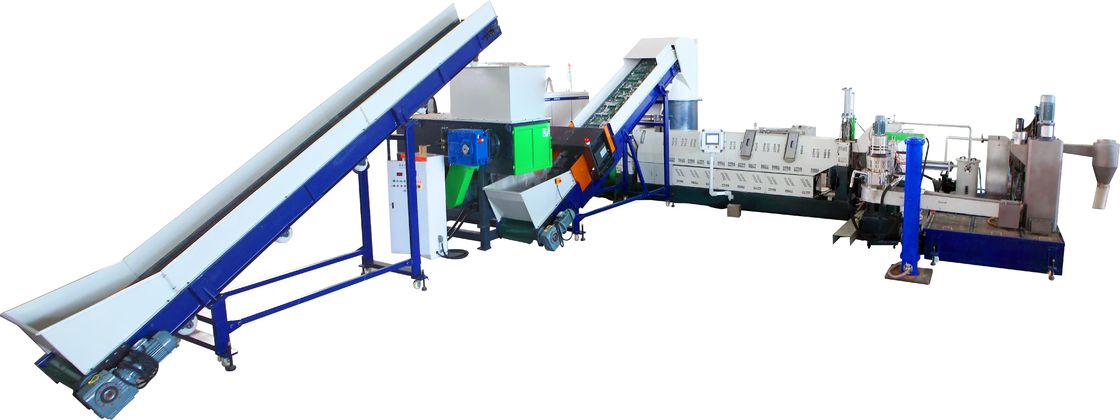

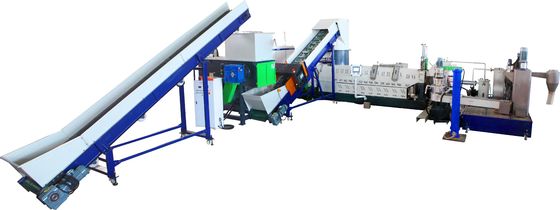

Machine Pictures
