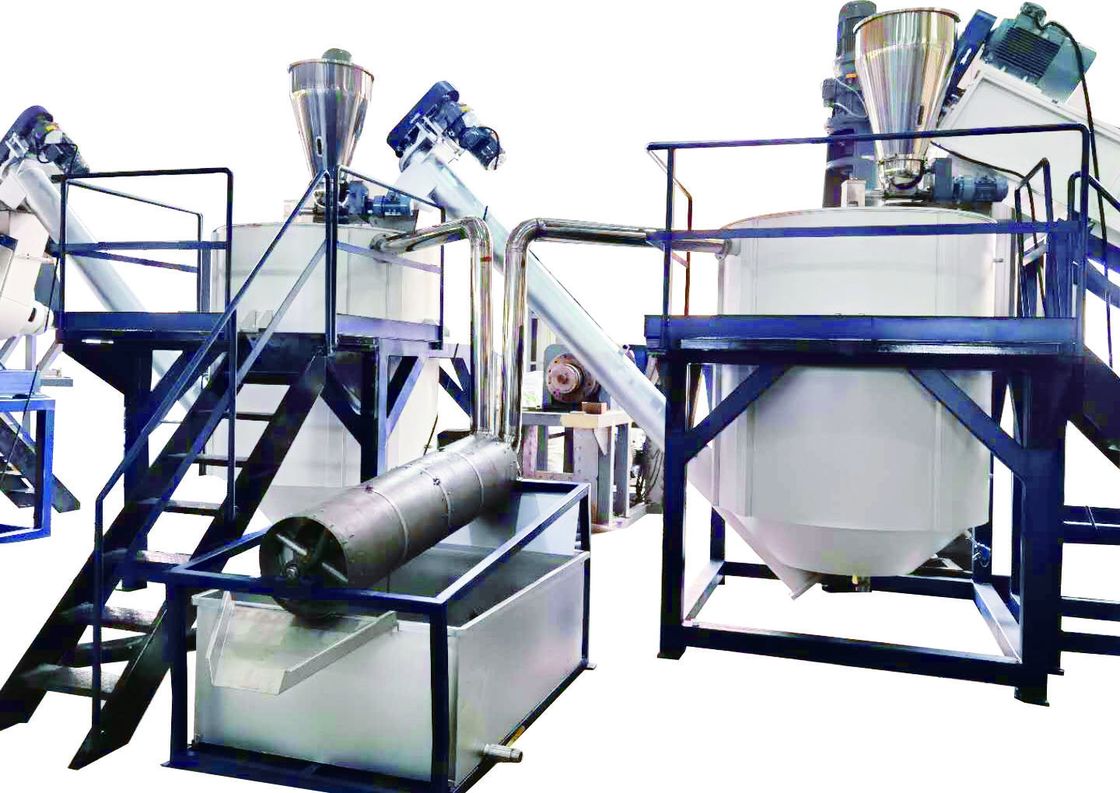

1000-3000kg/H Pet Bottle Recycling Machine Line
Product Description PET bottle washing line /PET bottle recycling plant/PET recycling processthis simple recycle washing line can separate the PET bottle with other bottle, like milk bottle, blue jar, shampoo bottle, etc.it also separate the PP cover and PE label with label removing system.the ...
pet bottle recycling machine line
,3000kg/h plastic pelletizing machine
,industrial pet bottle recycling equipment
Product Description
PET bottle washing line /PET bottle recycling plant/PET recycling process
this simple recycle washing line can separate the PET bottle with other bottle, like milk bottle, blue jar, shampoo bottle, etc.
it also separate the PP cover and PE label with label removing system.
the separating effect can reach 98%.
once customer did not have strict standard of PET washed flake, this line is the best choice.
Chengdu PuRui Polymer Engineering Co. Ltd is one of the leading manufacturers of plastic recycling machines, extruder, plastic granulator and related auxiliary equipment in China.
Our plastic pelletizing system's unique advantages are screw design, high output, good degassing and good filter effect.
Our plastic washing line such as crusher with bearable resistance and sharp cutter, washing units, separating or sorting machine, drying system, and packaging system are of sound quality.
|
No |
Name |
Function |
|
1 |
Debale |
To debale the |
|
2 |
Twin spiral charger |
Label sorting, intelligent sorting, manual sorting |
|
3 |
Rotary screen |
|
|
4 |
Belt conveyor |
|
|
5 |
Dewatering |
|
|
6 |
Pre-washing |
|
|
7 |
Intelligent optical sorting system |
|
|
8 |
Manual sorting system |
|
|
9 |
Crushing |
To crush the PET bottle into flake |
|
10 |
Spiral feeder |
Washing process |
|
11 |
Floating tank |
|
|
12 |
Hot washer |
|
|
13 |
High speed friction washer |
|
|
14 |
Dewatering machine |
|
|
15 |
Round floating washing |
|
|
16 |
Floating tank |
|
|
17 |
dewatering |
PET bottle flake drying process |
|
18 |
Pipe drying |
|
|
19 |
Bottle label separator |
To further remove the PE,PP label |
|
20 |
Compacting packing |
|
final PET flake quality reference
|
Moisture content |
<0.9% |
Label |
<19ppm |
|
PVC |
<49ppm |
Variegated tablets |
<28ppm |
|
glue |
<10.5ppm |
PH |
(neutral) |
|
PP/PE |
<19ppm |
Total impurity |
<100ppm |
|
Metal |
<18ppm |
Flake size |
12mm,14mm(customization) |
PET bottles recycling washing line
recycling machine/plastic recycling
1. High automation level, try best to reduce your cost on labor (especially for three shifts) and ensure high processing capacity: 500-6500kg/hr
2. Friendly control system (PLC integrated & separated control on each machine) and Touch screen panel, easy for operation, monitor and emergency stop.
3. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
4. Ideal impurity removal effect.
