PP PE Film Plastic squeezer machine plastic dryer machine

Squeezer dryer for PPPE film, the PP woven bags

As a machine to dry the washed PPPE film and the PP woven bags, it provides great advantages to solve the moisture problem of cleaning materials.

The final moisture could reach 3-5% stably.

Application:

PP PE film, such as agricultural film, greenhouse film, post-consumer plastic film, PE household waste film, PP woven bag cleaning and drying at the end of the plastic films and bags washing line, etc.

Structure:

It consists of motor, gearbox, screw, cylinder, heater and die mold, cutting device,wind transmission and material storage silo.

Principle:

Based on the principle of extrusion and dewatering, the rotating screw conveys and compresses the raw material toward the mold. The material is then cut into granules ranging from approximately 10–60 mm in length by a die-face pelletizer. The moisture content after extrusion is reduced to between 3–5%. After pelletizing, the material is pneumatically conveyed to a storage silo for further processing or final packaging. The end products are uniform, high-density pellets.

Benefits:

• Simplify Your Film Recycling Process with Our Advanced Pelletizing System
• Our innovative system streamlines traditional film cleaning and drying. By eliminating the need for a separate dehydrator, wet material can be fed directly from the rinse tank into the extruder.
• After processing, the material is thoroughly dried, achieving a moisture content of just 3%–5%—ideal for direct extrusion and pelletizing. The system is designed for ease of use, featuring fully automatic operation for consistent results.
• Built for performance and durability, the screw and barrel are constructed from 38CrMoAlA nitride alloy, hardened to a depth of 0.5mm. We ensure reliability with high-quality electrical components, including Schneider low-voltage electrical systems and Carlo solid-state relays.
• We stand behind our products with strong after-sales support and a one-year warranty on all non-wear parts.

Models:

Since many years tests and customers feedbacks, we make great improvement on the squeezers to make sure it run stable and make high performance.

Below is some pictures:

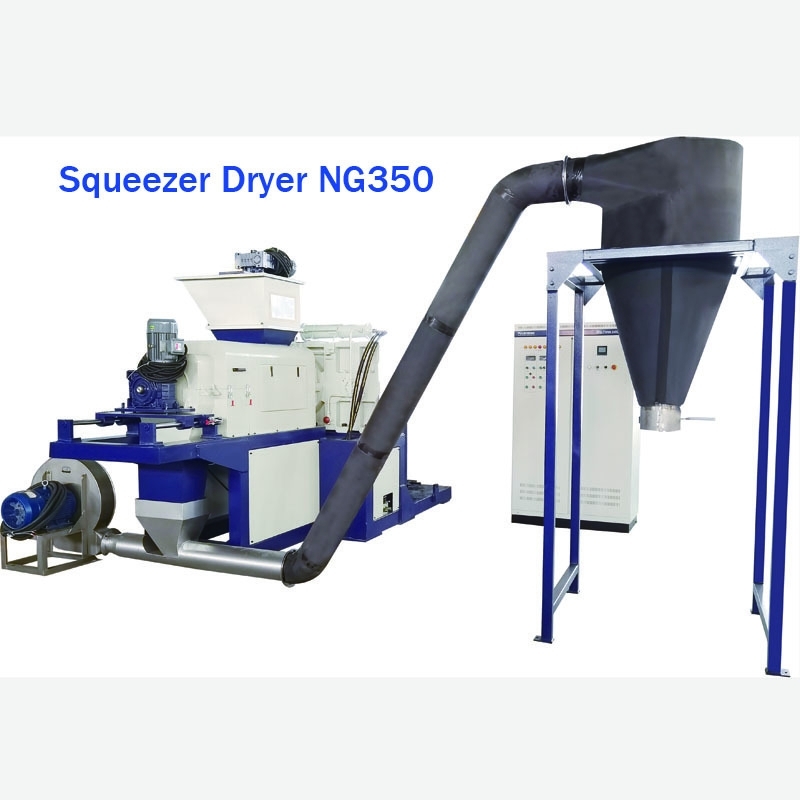

1 complete squeezer

2 Squeezer cutter

3 Squeezer die mould

Why choose us?

1. More than 20 years experience in the plastic recycling field.
2. Quick respinse on the customer requirement.
3. High quality and quality control.
4. Good and quick after sale service.
