Food Grade PET Granulator Machine Automatic PET Bottle Washing Recycling Machine

Brand Name:	PR or Pulier
Model Number:	QXL6500
MOQ:	1 SET
Price:	USD100000
Packaging Details:	Shipment Requested
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, SGS, UL

Document:

Name:

PET Granulator Machine

Material Processed:

Plastic Bottle

Plastic Type:

Screw:

Single Screw

Automation:

Automatic

Computerized:

Computerzied

Capacity:

6500kghr

Machine Component:

Plastic Sorting, Crushing, Washing And Drying

Motor:

WNM, ABB, WEG, DAZHONG, CHINA Famous Brand

Control Inverter:

Frequency Control

Gear Box:

Changzhou Guomao Or Customerized

Material:

Stainless Steel Or Carbon Steel

Wall Thickness:

3mm To 20mm

Color:

White And Green, Yellow And Blue

Warranty Time:

13 Months

Aboard Service:

Installation And Commision

HS CODE:

84778000

Supply Ability:

20 lines per year

Highlight:

Food Grade PET Granulator Machine

PET Granulator Machine Automatic

Automatic PET Bottle Washing Recycling Machine

Product Description

Food Grade PET Bottle Recycling Machines and Recycling Machines

PET bottle washing line /PET bottle recycling plant/PET recycling process

PR Recycling Machine (Label Separating, Crushing, Washing, Drying and Granulating)
HDPE/PP/PET Bottle Recycle Washing Machines are special designed for PET bottle, HDPE milk bottle, PP /PE Bottle, HDPE blue jar, oil bottle, Jerry Can, Waste Plastic Container, Plastic Bucket, Plastic Hollow Bottle with sand, stone, powder, oil and other sticky waste.
Capacity range: 500kg/h to 6500kg/h

PR Recycling Machine Information
Plastic bottle label separating, cutting, washing, recycling machine with high output and excellent clean ability
Whole plastic recycling line is used to crush, wash, dewater and dry the PP/PE flake or rigid material
Simple structure, easy operation, large capacity, energy-saving, safety
Automatic controlling, compacted structure, excellent production ability, perfect clean ability
Food Grade PET Granulator Machine Automatic PET Bottle Washing Recycling Machine 0

No	Name	Function
1	Debale	To debale the
2	Twin spiral charger	Label sorting, intelligent sorting, manual sorting
3	Rotary screen
4	Belt conveyor
5	Dewatering
6	Pre-washing
7	Intelligent optical sorting system
8	Manual sorting system
9	Crushing	To crush the PET bottle into flake
10	Spiral feeder	Washing process
11	Floating tank
12	Hot washer
13	High speed friction washer
14	Dewatering machine
15	Round floating washing
16	Floating tank
17	dewatering	PET bottle flake drying process
18	Pipe drying	PET bottle flake drying process
19	Bottle label separator	To further remove the PE,PP label
20	Compacting packing

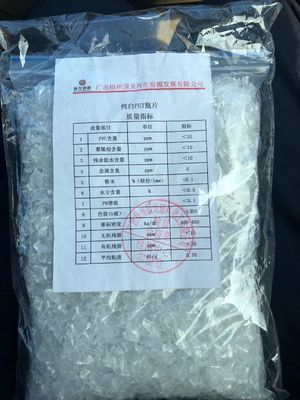

Final PET flake quality reference

Moisture content	<0.9%	Label	<19ppm
PVC	<49ppm	Variegated tablets	<28ppm
glue	<10.5ppm	PH	(neutral)
PP/PE	<19ppm	Total impurity	<100ppm
Metal	<18ppm	Flake size	12mm,14mm(customization)

Technical parameter of PET bottle washing line

Capacity(kg/hr)	Power installed (kW)	Warehouse are( m2)	Manpower	Water supply (m3/h)
500	116	1500	4	5
1000	200	1800	5	6
2000	406	2000	5	8
3000	500	2500	6	10

Output PET flake quality reference

Moisture content	<0.9%	Label	<19ppm
PVC	<49ppm	Variegated tablets	<28ppm
glue	<10.5ppm	PH	(neutral)
PP/PE	<19ppm	Total impurity	<100ppm
Metal	<18ppm	Flake size	12mm,14mm(customization)

PET Bottles Recycling Washing Line is an efficient solution for recycling PET bottles, designed to enhance automation and minimize labor costs while ensuring high processing capacity.

Key Features

High Automation:
Reduces labor costs significantly, especially beneficial for operations running three shifts.
Processing capacity ranges from 500 to 6500 kg/hr.

User-Friendly Control System:
Features a PLC integrated system with separate control for each machine.
Equipped with a touch screen panel for easy operation, monitoring, and emergency stopping.

Quality Materials:
All parts that come into contact with plastic and water are made of high-quality 304 stainless steel to prevent secondary contamination of flakes.

Effective Impurity Removal:
Ensures an ideal impurity removal effect for clean recycled PET flakes.

Company Introduction

Chengdu PuRui Polymer Engineering Co. Ltd is one of the leading manufacturers of plastic recycling machines, extruder, plastic granulator and related auxiliary equipment in China.
Our plastic pelletizing system's unique advantages are screw design, high output, good degassing and good filter effect.
Our plastic washing line such as crusher with bearable resistance and sharp cutter, washing units, separating or sorting machine, drying system, and packaging system are of sound quality.
