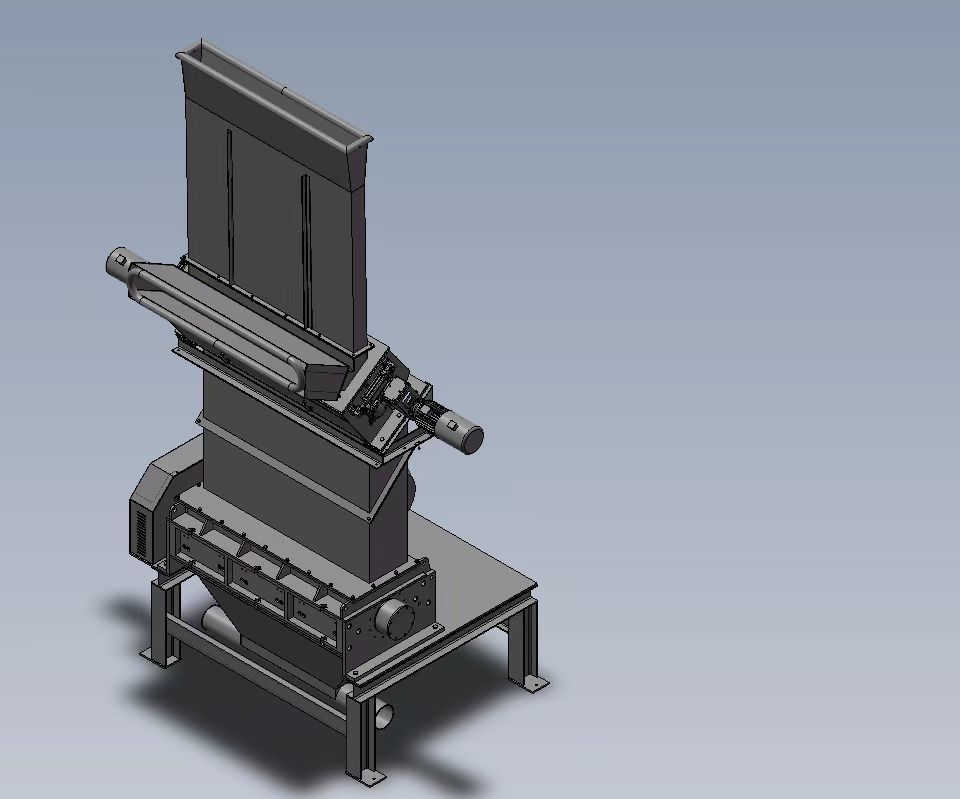

BOPP BOPET Film Plastic Granulator Equipment 3000kg/hr Plastic Film Granulator

High Efficiency and Power Saving BOPP BOPET Film Plastic Granulator

BOPET film is widely used in packaging, electronics and industrial fields, and is favored for its excellent mechanical properties and thermal stability.

Main functions
Crushing: Cutting BOPET film into small particles for subsequent recycling or reprocessing.
Improving recyclability: Through the crushing process, BOPET film can be separated from other materials more easily, improving recycling efficiency.
Design features
Cutter system: Usually equipped with high-strength knives, which can effectively handle films of different thicknesses and hardness.
Automation control: Modern equipment is usually equipped with PLC control systems to achieve automated operation and improve production efficiency.
Energy-saving design: Many crushers use energy-saving motors to reduce energy consumption.

Working flow:

Main Technical data:

Motor brand:WEG 132KW/480V/60Hz
rotating diameter and width:600mm*2000mm
cutter number: rotary cutters: 6 group ( 36 pieces); fixed cutters: 3 groups ( 9 pieces)
Mesh size:12mm
weighht: 5300kg size: to refer layout
Cutter material:DC53 58-60HRC
main shaft material: Cast steel ZG30 shaft: Skf belt: China made famous brand
Motor:132kw WEG

Application areas
Packaging industry: Used to process discarded BOPET packaging materials.
Recycled plastics industry: Use crushed films to make recycled materials.
Electronics industry: Process BOPET film components in electronic products.

Maintenance and care
Regularly check the knives: Make sure the knives are sharp and avoid excessive wear.
Cleaning system: Keep the inside and outside of the crusher clean to prevent material clogging.
Lubrication: Lubricate mechanical parts regularly to extend the service life of the equipment.
