Double Stage Single Screw Extruder Automatic PE Film Washing System Electrical Heating

Brand Name:	PR or Pulier
Model Number:	SJ140/SJ150
MOQ:	1 SET
Price:	USD100000 to USD150000
Packaging Details:	Shipment Requested
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE, SGS, UL

Document:

Name:

Double Stage Single Screw Extruder

Capacity:

500kg/hr

Motor:

WNM, ABB, WEG, DAZHONG, CHINA Famous Brand

Gear Box:

Changzhou Guomao Or Customerized

Application:

Squeezed Drying Film Flake

Screw And Barrel Material:

38CrMoAl Or Bimetallic

Electrical Control:

Electrical Panel Or PLC Touch Screen

Heating Way:

Electrical Heating

Cooling Way:

Force Cooling

Lubrication Way:

Force Lubrication

Quality Warranty:

12 Months

Aboard Service:

Installation And Commission

Operator:

1 Or 2

Delivery Time:

40 To 60 Days

Payment Wat:

T/T Or L/C

Color:

White And Blue

Degassing Number:

Triple Degassing

Screen Changer:

Non-mesh Filter

Supply Ability:

100 set per year

Highlight:

Double Stage Single Screw Extruder

Single Screw Extruder Automatic

PE Film Washing System Electrical Heating

Product Description

Automatic Double Stage Single Screw Extruder for Washed PE film

Applications of Squeezed drying film granulator:

Applicable plastic materials: PE, HDPE, LDPE,PP, etc

Material shapes: rigid flakes, agglomerated film,

Note: depending on different material properties, various downstream equipments are needed.

Plastic Pelletizing Line and Plastic Extruder

Features of film granulator:

Higher output, lower consumption, more automatic

Triple degassing for double stage extruder

Full automatic screen changer with much labor saving

Large capacity with low power consumption

20% more output than our first -generation products

15% less consumption than our first -generation products

2 labors operating the whole line

SJ series single stage pelletizing machine

Model	SJ130/SJ140	SJ160/SJ180	SJ180/SJ200	SJ200/SJ200
Recycled Material	Squeezed PP,PE films,HDPE bottle flakes,rigid ABS,PS,PC
Capacity (kg/hr)	500	800	1000	1500
Main Motor(kW)	132kW+37kW	185kW+45kW	200Kw+55kW	315kW+75KW

How it works

1.Belt conveyor uploading the material by timer

2.Feeder and extruder is controller by inverter,

3.Different L/D for different material

4.Nature degassing, vacuum degassing adopting for moisture

5. Non-mesh filter, single plate double position screen changer with ensure large filtering area

5. horizontal waster ring pelletizing way, vertical water ring pelletizing way, pull strip pelletizing way and underwater pelletizing way can be choosed

6. VOC system and automatic package system also can be equipped with customer need

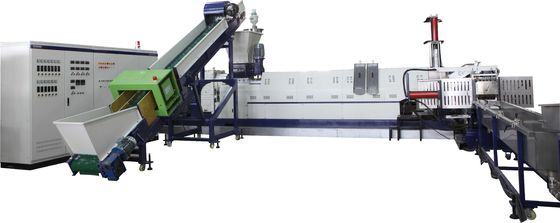

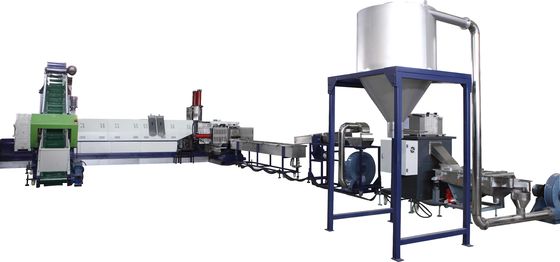

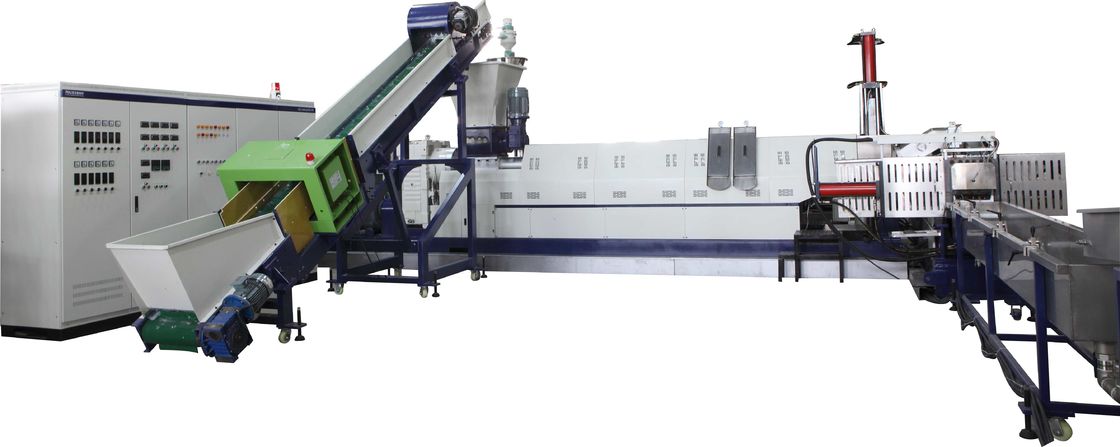

Machine Detail Pictures

Model name	SJ
output	Plastic pellets/granules/resins/plastic raw material
Machine parts	Side force feeder, main extruder, hydraulic screen filter, second stage extruder, hydraulic screen filter,pelletizing unit, cooling system, silo, cabinet
Recycling material	washed PP/PE/LDPE/HDPE film, bag, fiber,flake
Capacity range	100kg/h to 1200kg/h
Feeding way	Conveyor, roll driving system
Screw diameter	75mm to 200mm
Screw L/D	25 to 33
Screw raw material	38CrMoAl or bimetallic
degassing	Natural degassing, vacuum degassing
Cutting type	water ring pelletizing way, pull strip pelletizing
Cooling type	Water cool, air cool
voltage	Customized
Optional devices	Metal detector, water cooling system, feeding silo, vibration system
Delivery time	40 to 60 days
Warranty time	13 months
Technical supports	Machine layout, installation layout, engineer oversea service
certificate	CE/ SGS/ TUV/ CO
