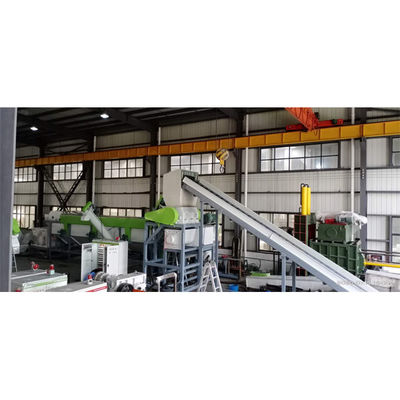

This fully automated production line is designed for shredding, crushing, washing, dewatering, and drying PP/PE films and PP woven bags from both post-consumer and post-industrial sources. Ideal for processing PE agricultural films, packaging films, and PP woven packaging bags.

• Simple structure and easy operation
• Fully automated control system
• High performance and production capacity
• Low energy consumption
• User-friendly interface with adjustable settings
• Energy-efficient design reducing operational costs

After thorough cleaning and drying, the processed PP and PE materials are ready for pelletizing. The resulting high-quality plastic pellets/resin can be sold on the market or used to manufacture new films and packaging bags.

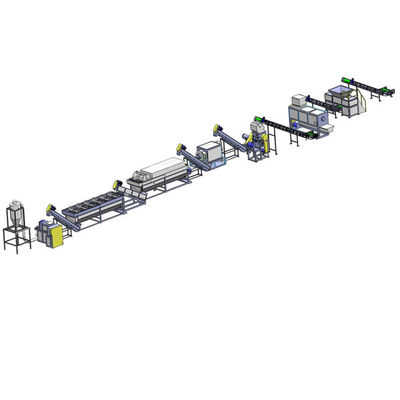

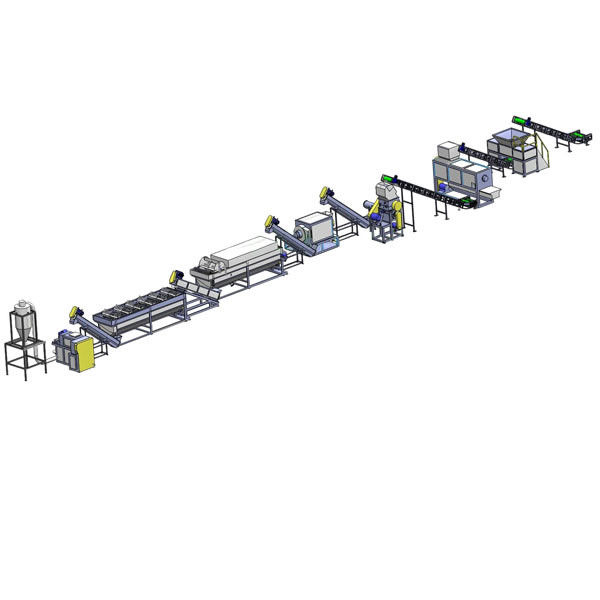

1. Belt conveyor/Chain charger
2. Preshredder
3. Trommel
4. Manual sorting
5. Sand remover
6. Magnetic sorter
7. Crusher
8. Horizontal friction washing
9. High speed friction washing
10. Floating tank
11. High speed friction washing
12. Floating washer
13. Screw loader
14. Plastic squeezer dryer

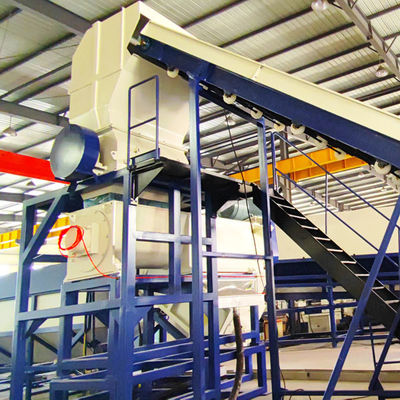

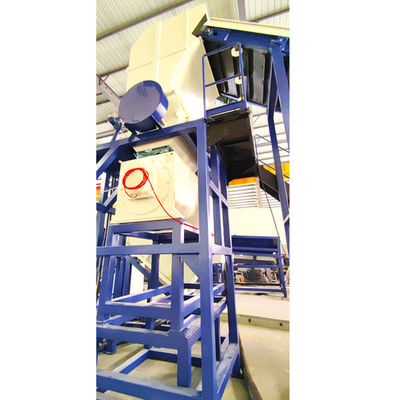

Intelligent design with powerful pre-shredding capability cuts bulk PE film, loose PP ton bags, and woven bags to 100-150mm size, reducing labor intensity for subsequent processing.

Designed with 25mm diameter holes to effectively remove impurities and sand from PP and PE films and woven bag waste, reducing sand content in flotation cells and conserving water.

Specialized design reduces sand content in raw materials. Rotating shaft and blades remove sand while bottom conveyor discharges it from the system.

High-quality crusher with unique shaft and blade angle structure efficiently processes PP and PE films, bags, and woven bags in optimal condition.

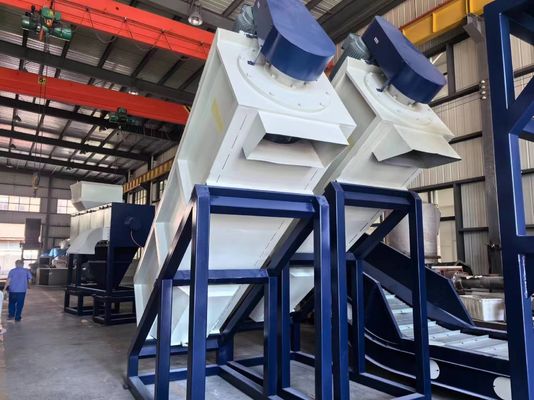

Effectively removes sand and adhered labels from plastic film through water-based cleaning process.

Designed to remove sand and adhered labels from film through water cleaning, delivering excellent performance.

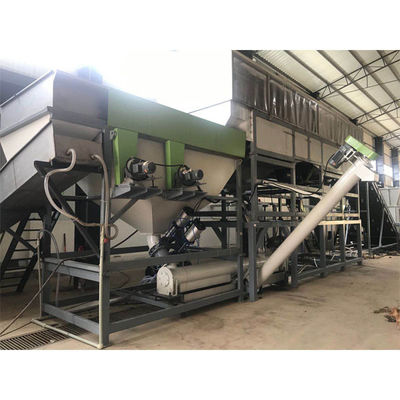

Makes raw materials float for separation. Optional pneumatic valves discharge waste and sand. Stainless steel chain design effectively removes waste while conserving water.

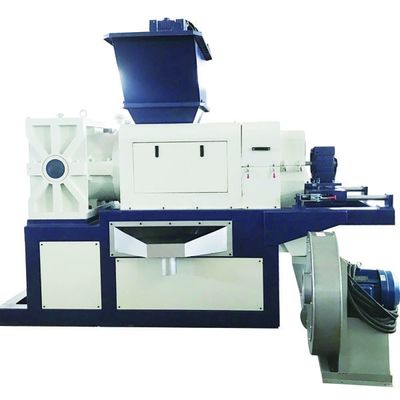

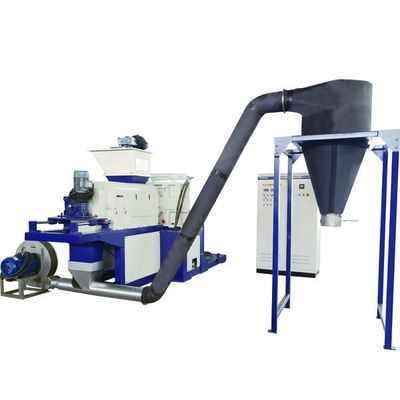

Dries raw materials from the washing system, effectively removing moisture and controlling humidity below 5%. This significantly improves the quality of subsequent plastic granulation processing.
