1000kg/Hr Plastic Drying Machine Ce Plastic Squeezing Machine 90kw - 350kw
1000kg/hr Washed PP Big Bag Plastic Squeezing Dryer Machine with CE Overview The "1000kg/hr Washed PP Big Bag Plastic Squeezing Dryer Machine with CE" efficiently dries washed PP big bag plastics at a rate of 1000 kilograms per hour. This equipment is designed to effectively remove excess moisture ...
1000kg/Hr Plastic Drying Machine
,Plastic Squeezing Machine 350kw
,Plastic Squeezing Machine 90kw
1000kg/hr Washed PP Big Bag Plastic Squeezing Dryer Machine with CE
Overview
Project Analysis
The moisture content of the film after washing is too high, which affects the quality of the particles produced.
The conical screw of the squeeze dryer pushes the material, squeezes out the water, and then passes through the cutting die to process the material into a semi-plasticized state.
The moisture content is within 3% to 5%.
Machine Feature:
Integrated screw and barrel avoid broking easily than welded screw
Strong gear box offer enough stenfth for whole system
Smart control with PLC touch screen and frequency inverter
Anti-blocking system for feeding part, which can avoid material block(anti-brige)
Output water content after plastic squeezer is 3% to 5%

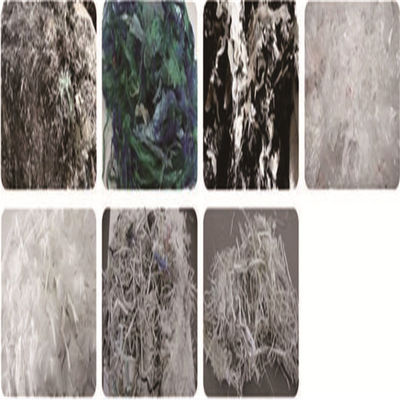

Material before plastic squeezer
Material after plastic squeezer
Technical Parameter of plastic squeezer
| Model | NG250 | NG300 | NG320 | NG350 | NG380 |
| PE Capacity(kg/hr) | 300 | 500 | 800 | 1000 | 1200 |
|
PP Capacity(kg/hr) |
200 | 400 | 500 | 600 | 800 |

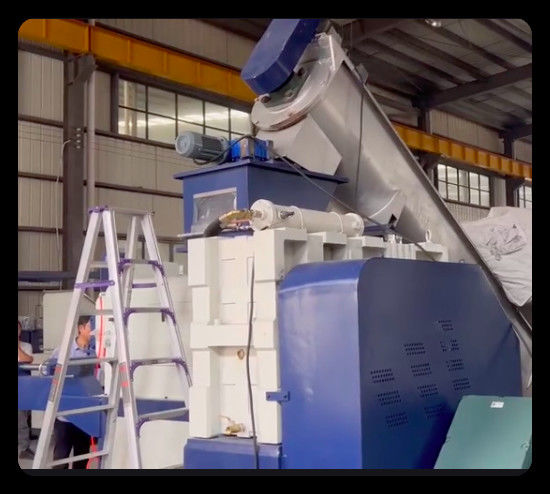

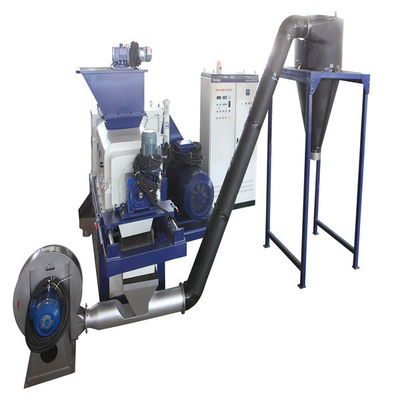

Main Machine Pictures
