PP PE Film Plastic Dryer Machine 90kw 110kw Squeezer Dryer Machine

Squeezer dryer for PPPE film, the PP woven bags

As a machine to dry the washed PPPE film and the PP woven bags, it provides great advantages to solve the moisture problem of cleaning materials.

The final moisture could reach 3-5% stably.

Application:

PP PE film, such as agricultural film, greenhouse film, post-consumer plastic film, PE household waste film, PP woven bag cleaning and drying, etc.

Structure:

It includes: motor, gearbox, screw, cylinder, heater and die mold, cutting device,wind transmission and material storage silo.

Principle:

It uses the principle of extrusion dehydration. The rotating screw to push and squeeze the raw material to the die mould , and cut the material into about 10-60mm through the die mold and particle cutting device. The moisture content after extrusion is within 3-5%. After pelletizing it will be blown into the material storage silo for extrude pelletizing. The final products will be the regular pellets.

Benefits:

• Make the traditional film cleaning and drying simple. Without the dehydrator, raw material can be directly from the rinse tank.
• Expressed dry, 3% -5% of the material moisture can be used directly for granulation.
• Easy to operate, with automatic control.
• Screw and cylinder using 38CrMoA1A, nitride depth 0.5mm
• Good electric parts, such as Schneider low voltage electric parts and switch, Carlo solid relay.
• Strong after sale service.With one year guarantee time for the non-wear parts.

Models:

Since many years tests and customers feedbacks, we make great improvement on the squeezer to make sure it run stable and make high performance.

Below is some pictures:

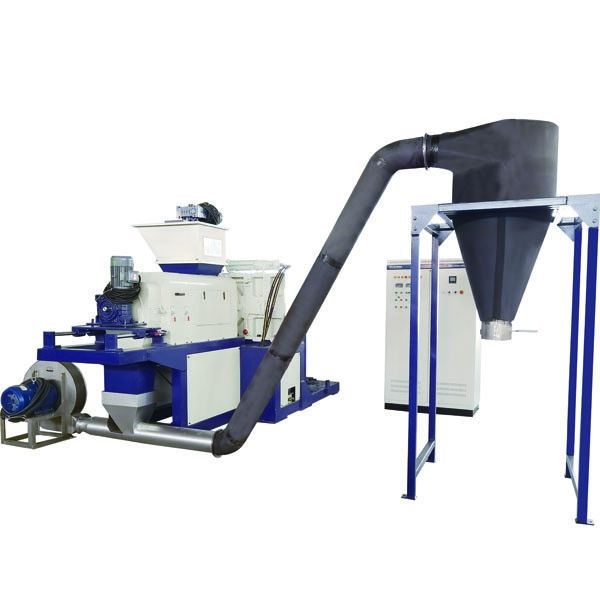

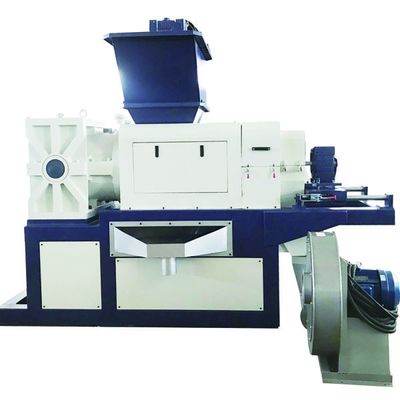

1 complete squeezer

2 Squeezer cutter

3 Squeezer die mould
