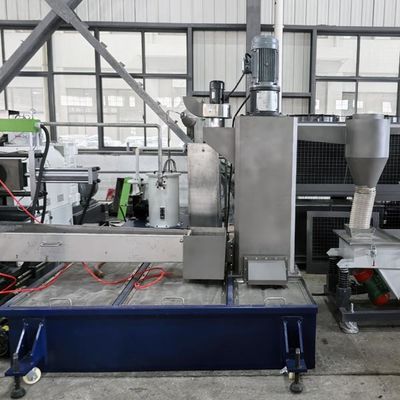

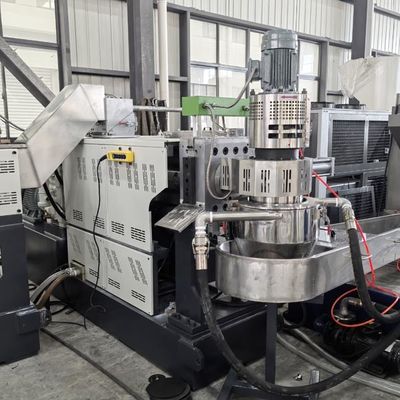

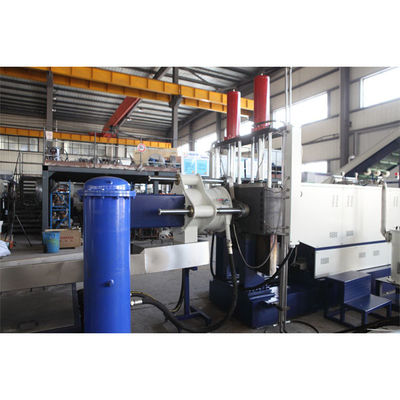

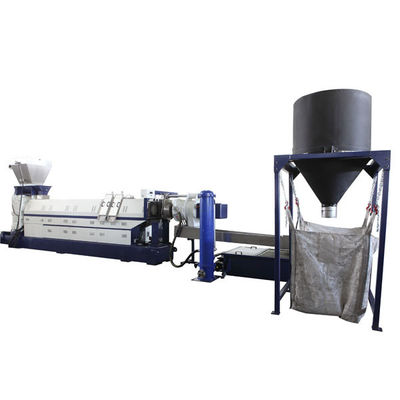

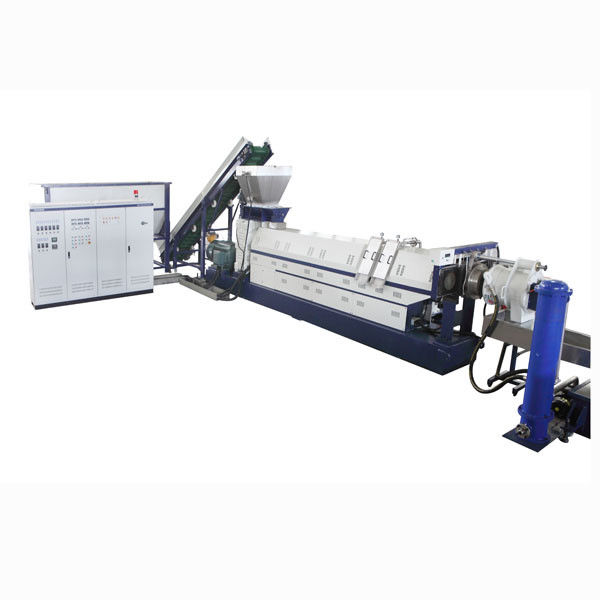

SJ type Single-Screw Extruder One-Stage Pelletizer plastic recycling machine

PR-PUlier, a leader in the plastics recycling industry for 18 years. This state-of-the-art equipment is designed to revolutionize the recycling process of washed or clean squeezed PP (polypropylene) and PE (polyethylene) or PS, ABS, PC,PA6/PA66 materials, ensuring efficiency, reliability and superior quality for every pellet produced.

General information:

SJ pelletizing machine is mainly for the rigid plastics recycling, such as the

crushed or regrind PE, PP, PS, ABS, PC,PA6 etc. Those rigid plastics comes from household appliances, HDPE drums for oil and fuel, HDPE milk bottles, detergent and shampoo bottles, etc. It can also recycle the washed and squeesed dry PE, PP films and soft plastics.

Application:

• Crushed or regrind PE, PP, PS, ABS, PC,PA6
• Squeezed washed PP and PE films.

Model:

Features:

1.Degassing system

• Non degassing system suitable for the clean films
• Natual degassing system suitable for the normal films
• Vacuum degassing system suitable for the materials washed and need to remove some the ink and gas.

2.Screen changer system

• Several options depending on the raw material condition and customer prefer
• Plate type: easy to option, normal filtering space
• Piston type round filter: Suitable for clean materials
• Piston type large filtering space: Suitable for much dirty materials, such as the washed PP PE films. Less change filter frequency, save labour work, increase the capacity. To change the filter will be a little longer than the plate type and piston type. While you are familiar with it, it will be quick.
• Laser filter or non mesh filter: It is the automatically no need to change the filters or screens. It is with a filter plate or two plates inside with two rotary blades to rotate to scrap the dirty. The screen mesh could be 40mesh, 60 mesh, 80 mesh.

3.Pelletizing system

According to the raw material characteristics, we have the below several options:

• Watering pelletizing system. The horizontal watering pelletizing suitable for the PE films, and vertical watering pelletizing system will be good for the PP type.
• Dry strand pelletizing system suitable for most raw material, including the engineering polymer, such as PP(film grade or the blow and injection grade) PE(film grade or the blow and injection grade), ABS, PC, etc
• Wet (undewater)strand pelletizing system is suitable for the PET, such as the PET bottle flakes, PET fiber, BOPET films etc.
• Underwater pelletizing is suitable for the PP rigid PE rigid or the PBAT material for customer have special requirement.

4. Good motor brands and qualified high torque gearbox.

We use the China best brand motors, Wanan, Dazhong or the WEG with UL certification, ABB motors, and Siemens motors optional. Electric parts use the the international brand Schneider or Siemens. Temperature control OMRON. Siemens PLC control is available. Good electric protection method in the machine.

5.Nice design for the safety and usage in plant. We have strict quality control.

We have been in this plastic pelletiizng field for more than 18 years exporting to more than 80 countries all over the world. With much experience and technology workers to solve your plastic recycling machine.
