High Efficiency 200kg/Hr PP/PE Plastic Pelletizing Recycling Machine with 12 Months Warranty
High Efficiency 200kg/Hr PP/PE Plastic Pelletizing Recycling Machine with 12 Months Warranty
Basic Properties
Country Of Origin
China
Brand Name
PULIER OR PR
Certificate
CE
PRODUCT MODEL
ML85
Trading Properties
MOQ
1SET
Unit Price
Negotiable
Payment Method
L/C or T/T
Supply Capacity
100 sets per year
Product Summary
PP/PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder Machine High Efficiency PP PE Film Recycling Pelletizing Extruder Machine designed for processing various plastic waste materials into reusable pellets. Applications PE/PP roll, bags, film scraps Buddle film, film sheet, shrink ...
Product Details
Highlight:
PP Plastic Pelletizing Recycling Machine
,PE Plastic Pelletizing Recycling Machine
,200kg/Hr Recycling Extruder Machine
Name:
Plastic Pelletizing Recycling Machine
Application:
LLDPE LDPE PE PP OPP CPP BOPP BOPA BOPET Film Or Bag
Capacity:
200kghr
Screw And Barrel Material:
38CrMoAl Or Customerized
Motor:
WEG Siemens ABB China Famous Brand With Inverter
Eelectrical Control:
Eelctrical Panel Or PLC Touch Screen
Gear Box:
Changzhou Guomao Or Customerized
Heating Way:
Electrcial Heating
Cooling Way:
Force Cooling
Lubrication Way:
Froce Lubrication
Quality Warranty:
12 Months
Aboard Service:
Installation And Commission
Operator:
1 Or 2
Product Description
PP/PE Plastic Pelletizing Recycling Machine 200kg/Hr Recycling Extruder Machine
High Efficiency PP PE Film Recycling Pelletizing Extruder Machine designed for processing various plastic waste materials into reusable pellets.
Applications
- PE/PP roll, bags, film scraps
- Buddle film, film sheet, shrink film
- Garbage bags, stretch film
- Post-consumer bags, shopping bags
- PP non-woven bag pelletizing
- Cement bag, rotajet bags
- Washed flakes recycling
Technical Parameters
| Model | ML75 | ML85 | ML100 | ML130 | ML160 | ML180 | ML200 |
|---|---|---|---|---|---|---|---|
| Screw diameter (mm) | 75 | 85 | 100 | 130 | 160 | 180 | 200 |
| L/D | 26 to 37 | ||||||
| Output (kg/h) | 100-150 | 200-350 | 400-550 | 600-800 | 800-1000 | 1000-1200 | 1200-1500 |
Working Process
- Belt conveyor feeds material into shredding compactor (inter-lock design)
- Material gets pre-heated, pre-homogenized and pre-plastified during shredding
- Friction force between rotary and fixed cutters shrinks material
- Shrinked material melts in main extruder through heating/cooling
- Water ring cutting system forms final plastic pellets
Key Advantages
- Professional manufacturer since 2006 with dedicated technical design department
- Energy efficient operation with high output capacity
- 12-month quality guarantee from Bill of Lading date
- 40-60 work days delivery time
- Overseas installation service available (5-7 days completion)
- Comprehensive training on machine operation and commissioning
Specifications
| Model name | ML Series |
| Output | Plastic pellets/granules/resins |
| Machine components | Belt conveyor, cutter compactor, main extruder, pelletizing unit, cooling system, silo, cabinet |
| Recycling material | PP/PE/LDPE/HDPE film, bag, fiber |
| Capacity range | 100kg/h to 1200kg/h |
| Screw diameter | 75mm to 200mm |
| Screw L/D | 26 to 33 |
| Screw material | 38CrMoAl or bimetallic |
| Degassing | Natural or vacuum degassing |
| Certifications | CE, SGS, TUV, CO |

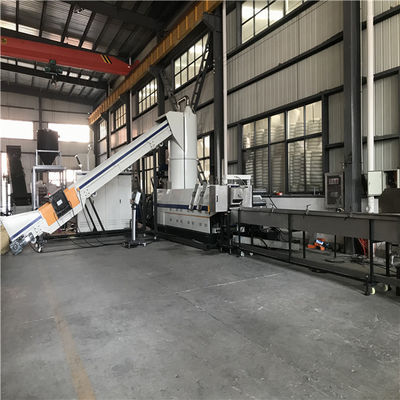

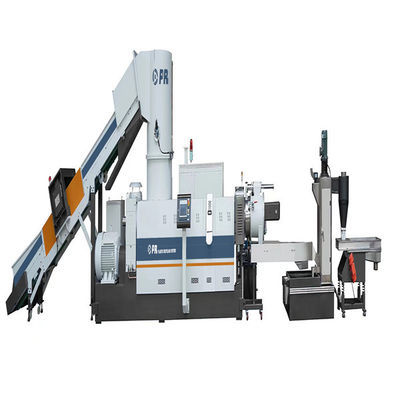

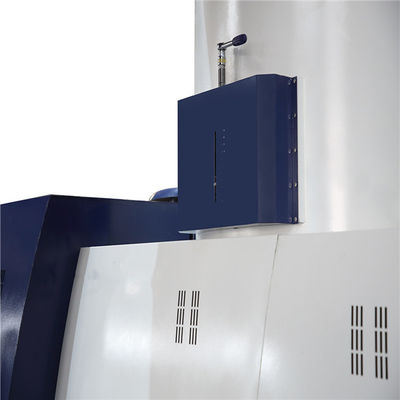

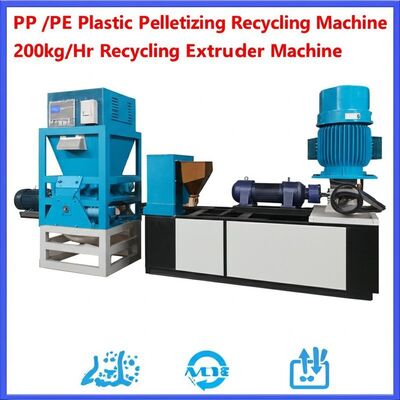

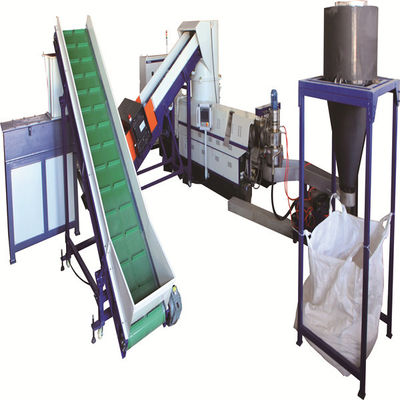

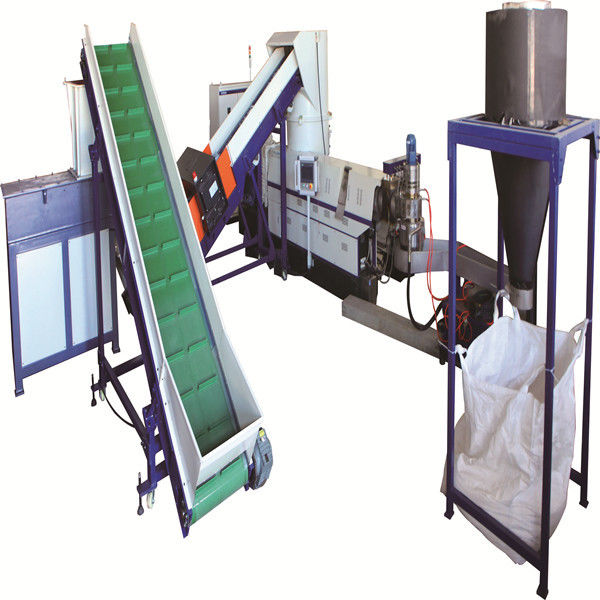

Machine Images
