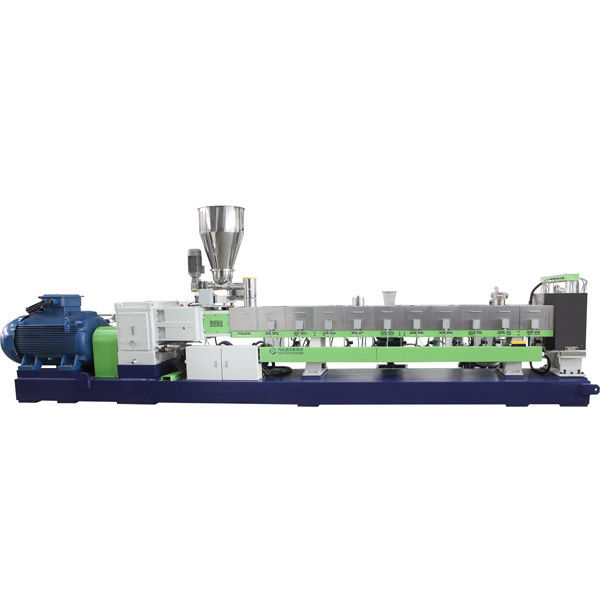

High Performance Twin Screw Extruder For Compounding and Masterbatches

TSSK series Twin Screw Extruder are the industry's best compounding machines which widely used in high performance processing equipment in different fields. The Twin extruders can be customized with different screw configurations, barrel designs, and auxiliary equipment to meet specific processing requirements. Including plastic engineering, chemical, plastic compounding, mixing, color masterbatches. We supply turn-key solutions to your compounding projects. This includes material handling, dosing, extrusion, pelletizing and other aspects.

Application: Filler Masterbatch, Color Masterbatch, Additive Masterbatch, Biodegradable Plastic, Cable Compounding, Engineering Plastics Reinforcing (GF), PVC Compounding, Polyolefin Compounding, Reacting Direct Extrusion, Thermoplastic Elastomers, PET pelletizing and other plastic such as PE, PP, XLPE, WPC.

Twin Screw Extruder Features

Intermeshing, Co-rotating Screws: The two screws are mounted on splined shafts and rotate in the same direction, causing the material to be continuously mixed and transported through the barrel.
Tight, Self-Wiping Design: The tight clearance between the screws and the barrel walls, as well as between the intermeshing screw elements, creates a self-wiping action that prevents material buildup and stagnation. This ensures high efficiency and complete self-cleaning.
High Efficiency and Versatility: The combination of intensive mixing, efficient material transport, and complete self-cleaning makes twin-screw extruders highly versatile and capable of processing a wide range of materials, including thermoplastics, thermosets, elastomers, and compounds.
Low Maintenance: The self-cleaning action and lack of stagnant zones significantly reduce the risk of material degradation and buildup, resulting in lower maintenance requirements compared to other extrusion technologies.

Types Of Twin Screw Extruders

model TSSK-20 TSSK-30 TSSK-35 TSSK-50 TSSK-65 TSSK-72 TSSK-92 Screw diameter(mm ) 21.7 30 35.6 50.5 62.4 71.2 91 Rotary speed(RPM) 600 400 400/600 400/500 400/500 400/500 400/500 Motor power(Kw) 4 11 11/45 37/45 55/75 90/110 220/250 L/D 32-40 28-48 32-48 32-48 32-48 32-48 32-40 Capacity (Kg/H) 2-10 5-30 10-80 20-150 100-300 300-600 600-1000

Delivering The Service You Deserve

PULIER designs, develops, and delivers a wide range of mixing, drying, compounding, reacting, extracting twin screw extruder equipment for many different manufacturing applications.

More than 30 years of industry experience

Quality parts and service

Professional, knowledgeable staff
