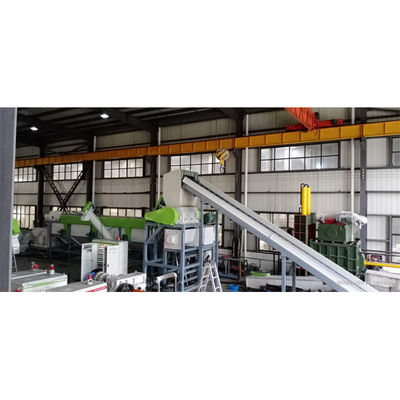

Fully Automatic Plastic Washing Recycling Machine for PP PE Films and Woven Bags

This whole production line is used to shred, crush, wash, dewater and dry PP/PE film, PP woven bags, either source from post-consumer or post-industrial. For example PE waste agriculture films, waste packing films etc, PP woven bags for packing etc.

Our washing line features in the simple structure, easy operation, fully automatic, good performance, high capacity and low consumption etc. We believe our unique design will save much energy and labour for you and make high efficiency.

What sets our PE Film Cleaning Line apart is its user-friendly interface and automated controls, allowing operators to monitor and adjust settings with ease. Additionally, the line is designed with energy efficiency in mind, reducing operational costs while minimizing environmental impact.

Usually, after the raw materials have been fully cleaned and dried, PP and PE waste will enter the pelletizing production line. The production line will process and pelletize raw materials to produce high-quality plastic pellets/resin for subsequent production. The materials can be sold into the pellet market or used to make new films or packaging bags.

Models

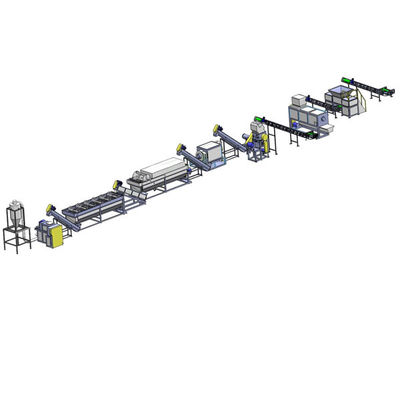

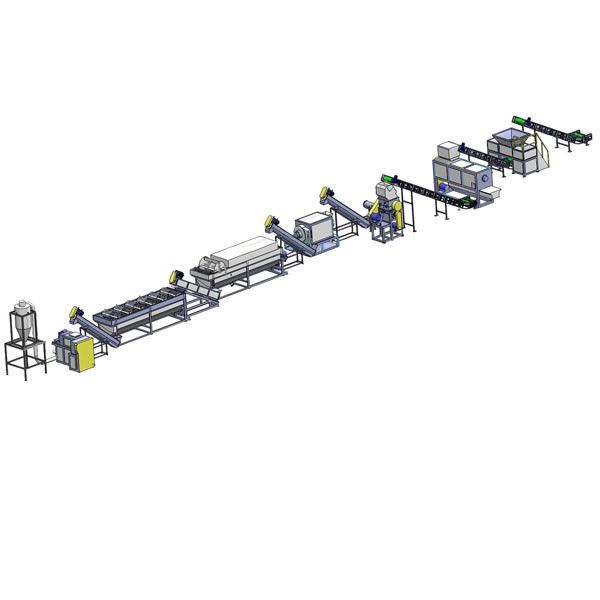

Layout:

1. Belt conveyer/Chain charger

2. Preshredder

3. Trommel

4. Manual sorting

5. Sand remover

6. Magnetic sorter

7. Crusher

8. Horizontal friction washing

9. High speed friction washing

10. Floating tank

11. High speed friction washing

12. Floating washer

13. Screw loader

14. Plastic squeezer dryer

The main washing machines features:

A.Preshredder

Intelligent design and powerful pre-shredding force can cut bulk PE film, loose PP ton bags and woven bags to size of 100-150mm. This will reduce the labor intensity of subsequent work.

B. Trommel

The design with a hole diameter of 25mm can effectively remove impurities and sand mixed in PP and PE films and PP woven bag waste. Ultimately, this will reduce the sand content in the flotation cells and save water.

C.Sand remover

Special design to reduce the sand in the raw materials. The rotation shaft and blades will remove the sand and bottom conveyer will discharge the sand out.

D.Special design crusher

The specially designed high-quality crusher, equipped with a uniquely structured shaft and blade angle, can efficiently process PP and PE films, bags, and PP woven bags in good condition.

E.Horizontal Friction Washing

It is designed to effectively remove sand and adhered labels from the film and can be cleaned by adding water.

F.High speed friction washing 1

It is designed to remove sand and adhered labels from the film and is cleaned by adding water. Its performance is excellent.

Old type

New type

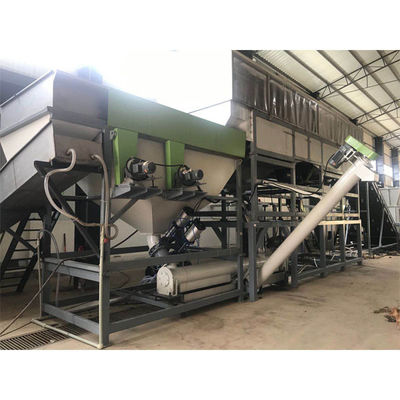

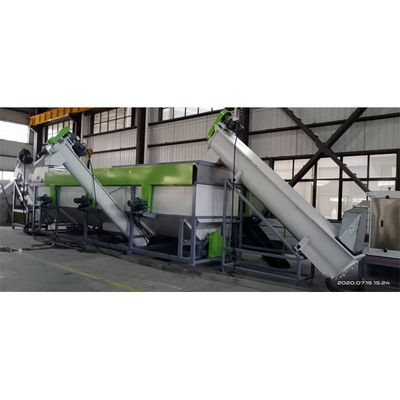

G.Floating tank

It will make the raw material float. Depending on the condition of the raw materials, we can add pneumatic valves to discharge waste and sand. The design using stainless steel chains can effectively discharge waste, thus saving water.

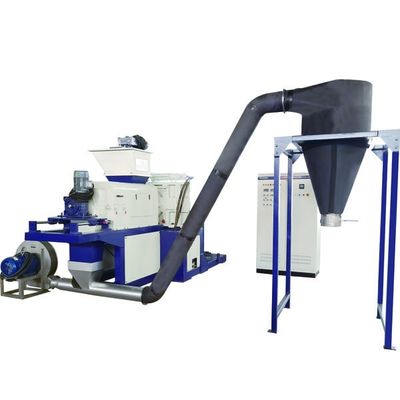

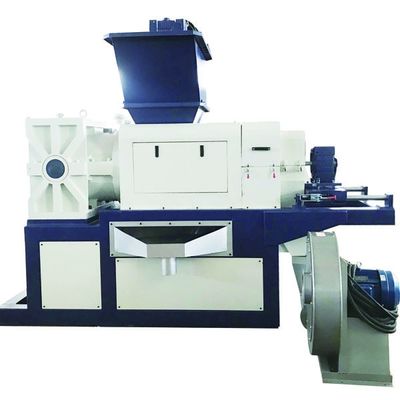

H. Plastic squeezer dryer

It will be used for drying raw materials in the washing system, which can effectively remove moisture and control the humidity within 5%. This will greatly improve the quality of subsequent plastic granulation processing.
