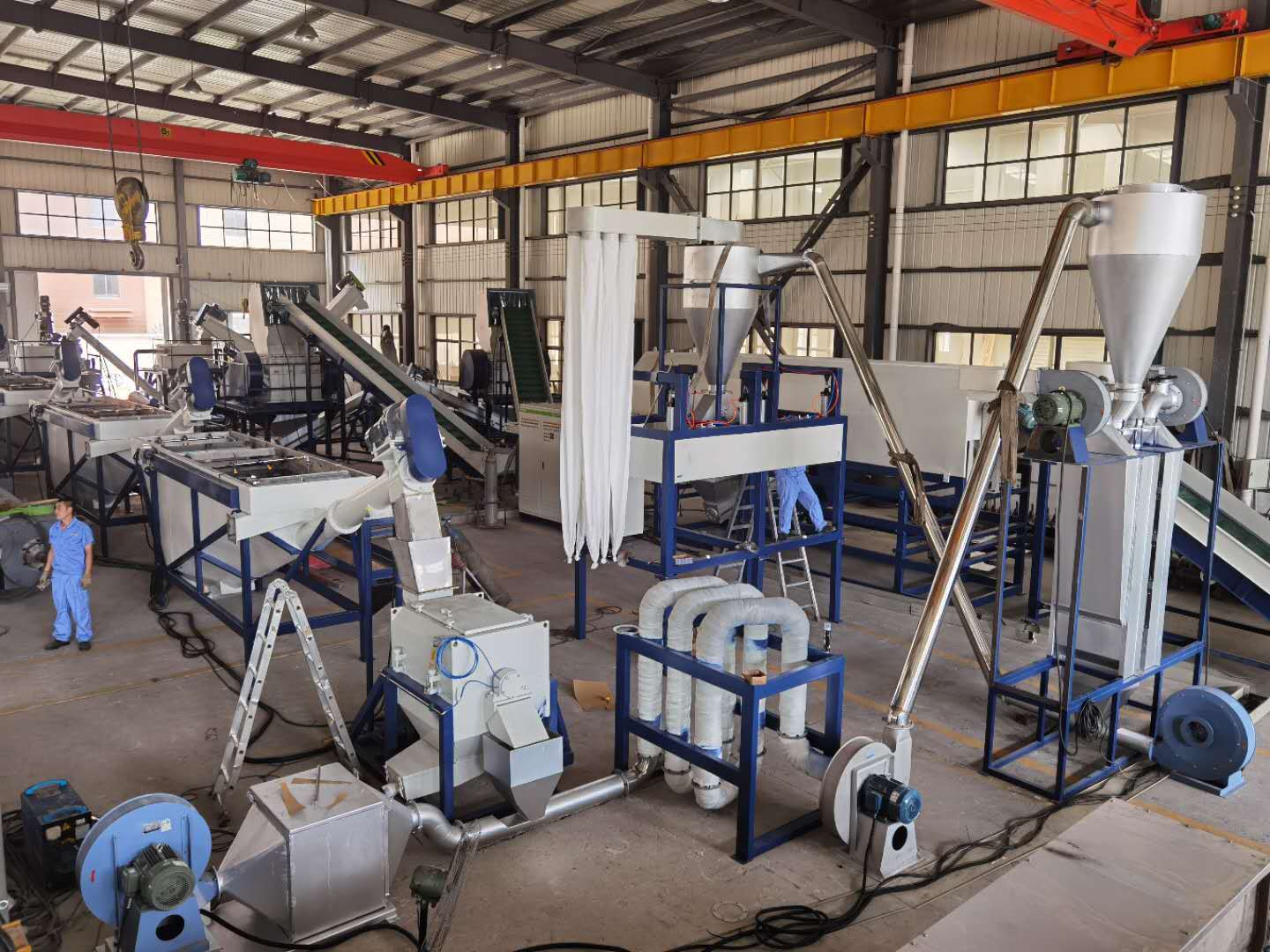

1000kg per hour PET bottle washing line
The whole washing line is to recycle the PET bottle bales. The whole washing line include the below machines:
- 拆包机 bale opener
- 皮带输送 Belt conveyer
- 滚筒筛 Rotary screen
- 皮带上料 Belt conveyer
- 脱标机 Label remover
- 预清洗机 Pre-washer
- 光学分选机 Intelligent optical sorting system
- 人工分选平台 Manual sorting system
- 破碎机 Crusher
- 热清洗机 Hot washer
- 螺旋上料 Screw loader
- 热清洗机 Floating washer
- 高速摩擦洗机 High speed friction washer
- 脱水机 Dewatering
- 圆形漂洗机 Round floating washer
- 漂洗机 Floating washer
- 脱水机 Dewatering
- 管道干燥机 Pipe drying
- 标签分离机 Bottle label separator
- 振实包装 Compacting packing
-
Bale opener
Newly design PET bottles bales opener. Four shaft effectively open the bales and convey the separated bottles into the belt.(Picture)
-
Label remover
Effectively remove the labels on the pressed bottles 99% and labels on the round bottles 90%. (Picture)
-
Dewatering machine
It can remove water and sand to reach moisture 1%.(Picture)
-
Bottle flakes labels separator
Effectively remove the crushed labels mixed in the bottles flakes.
The washing line consumption:
|
Items 品名 |
Average consumption 平均消耗 |
|
Electricity 电力(kwh) |
170 |
|
Steam 蒸汽(kg) |
510 |
|
Washing detergent 清洗剂(kg/ton) |
5 |
|
Water 水 |
2 |
PET washing line quality and specification
|
产量Capacity(kg/h) |
装机功率Power installed(kW) |
需要空间Required space(M2) |
人员Labour |
蒸汽需求Steam requirement(kg/h) |
水消耗Water consumption(M3/h) |
|
1000 |
490 |
730 |
5 |
510 |
2.1 |
|
2000 |
680 |
880 |
6 |
790 |
2.9 |
|
3000 |
890 |
1020 |
7 |
1010 |
3.8 |
PET flakes quality reference table
|
水分含量Moisture content |
<0.9-1% |
|
PVC |
<49ppmm |
|
胶水Glue |
<10.5ppm |
|
PP/PE |
<19ppm |
|
金属Metal |
<18ppm |
|
标签Label |
<19ppm |
|
Variegated tablets |
<28ppm |
|
PH |
Neutral |
|
总的杂质Total impurity |
<100ppm |
